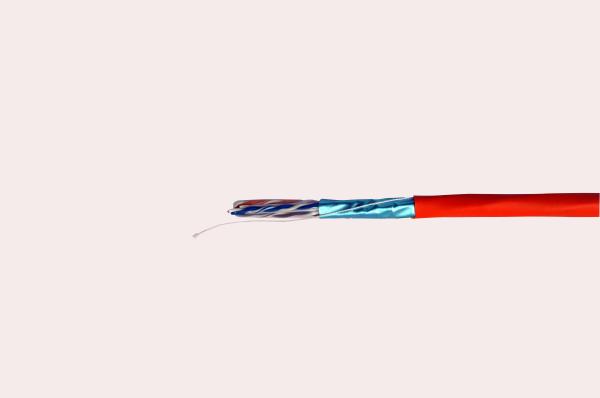

UL Listed CAT5E CMP Ftp Ethernet Cable FEP Insulations For Networking OEM Available

Brand Name : YYS

Model Number : CAT5E UTP PLENUM

Certification : ETL UL CPR

Place of Origin : CHINA

MOQ : 10KF

Packaging Details : 305M/PULL BOX, 500FT/BOX

FTP : Over all Alu. Foil

Flame retarded : CMP

Approved : ETL UL

Pull out : Smooth, Without Kink

Coil : Without Coiled Back

Performance : Stable

Test : 100% Pass Fluke 1800 Test

Contact Now

UL Listed CMP Solid Bare Cooper 24AWG FEP Insulations, Low Smoke FR-PVC Jacket CAT5E F/UTP

Conductor	Material	Bare copper
	Nom.O.D.(mm)	4X2X0.525 (+/-0.005)mm
Insulation	Material	FEP
	Diameter	0.91±0.03 mm
AL-FOIL	Overlapping>25%

Sheath Physical

Properties

Before Aging Tensile Strength (Mpa) ≥10.0

Elongation(%) ≥100

Aging Period (℃×hrs) 100℃×24h×7d

After Aging Elongation(%) ≥75

Cold bend(-20±2℃×4h)

8×Cable O.D., No visible cracks

Electrical

Characteristics

(20℃)

Capacitance Unbalance (pF/100m) ≦330

DC Conductor Resistance Unbalance (%) max 5.0

DC Resistance (Ω/1Km) max 96

Impedance ((Ω) 1.0-100.0MHz 100±15

100.0-350.0MHz 100±20

DC Resistance (Ω/1Km) max NVP : 70%

--------

Dielectric Test 2kv/min

Temperature Range:

-20℃ to + 75℃

Technical Performance (100m):

Frequency RL 　 ATT NEXT PHASE DELAY

(MHz) ≥dB 　　≤dB 　　 ≥dB ≤ns

1 20.0 2.0 65.3 570.0

4.0 23.0 4.1 56.3 552.0

8.0 24.5 5.8 51.8 546.7

10.0 25.0 6.5 50.3 545.4

16.0 25.0 8.2 47.3 543.0

20.0 25.0 9.3 45.8 542.1

25.0 24.3 10.4 44.3 541.2

31.25 23.6 10.7 42.9 540.4

62.5 21.5 17.0 38.4 538.6

100 20.1 19.8 35.3 537.6

200 18 29.0 30.8 536.5

350 16.3 44.9 27.2 535

Frequency PSNEXT ELFEXT PSELFEXT

(MHz) ≥dB ≥dB ≥dB

1 62.3 63.8 60.8

4 53.3 51.7 48.7

8 48.8 45.7 42.7

10 47.3 43.8 40.8

16 44.2 39.7 36.7

20 42.8 37.7 34.7

25 41.3 35.8 32.8

31.25 39.9 33.9 30.9

62.5 35.4 27.8 24.8

100 32.3 23.8 20.8

200 27.8 17.7 14.7

350 26.3 12.9 9.9

FAQ

1. Q: What kind of cable do you produce?

We specialize in producing all kinds of LAN cable,Speaker cable, Security Cable Especially CAT5E,Cat6, Cat6A UTP/ S/FTP, CMP, CMR,CM,CMX, CL2,CL3,FPLP, VDSL,ASDL,etc.

2.what's your MOQ?

A: Our MOQ is 10 pieces per item. Free samples can be sent for your quality evaluation.

3. Q: What’s your delivery time?
Normally, our delivery time is 7-15 days after receiving deposit. Base on the quantity of the order.

4. Q: What are your payment terms?
We accept T/T, L/C. Western Union,Other payments accept through negotiation.

5. Q: What is your manner of packing?
The color box , cartons and Wooden Drum

6. Q: Can your factory customize cables based on customer’s samples?
Yes, we can. OEM is welcomed. Our R&D team is strong in developing cable. Our regular customers got great profit from these outstanding cables
